Contour Parallel Roughing Cycle G73 Or Profile Turning Cycle Or Copy

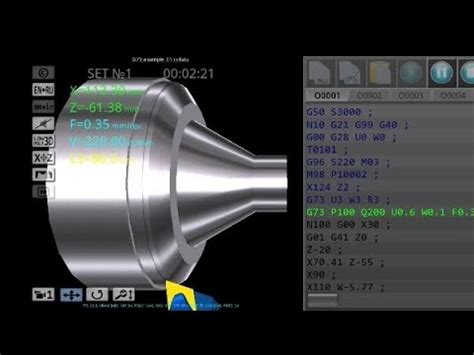

G73 Cnc Code Turning. Cnc programming G73 pattern repeating cycle YouTube G73 U(1) W(1) R; G73 P Q U(2) W(2) F; G73 - PATTERN REPEATING CYCLE U(1) - DEPTH OF CUT IN X-AXIS W(1) - DEPTH OF CUT IN Z-AXIS R - AMOUNT OF ROUGHING PASSES P - FIRST LINE OF SUBROUTINE Q - LAST LINE OF SUBROUTINE U(2) - AMOUNT LEFT ON FOR. On a lathe, the G73 code is used for a pattern repeating cycle

Here is a cnc programming example, I already have posted multiple cnc programming examples The machine will cut the same pattern multiple times, stepping in on each pass

Mastercam 2021 tutorials How to use G73 In Mastercam CNC Turning

G74: Peck drilling cycle for CNC lathe: G75: Grooving cycle for internal or external grooves, often using pecking method. What is G73 in G-Code? G73 is a modal command that sets the CNC machine to run a peck drilling cycle But Fanuc G73 Pattern repeating cycle removes the rough material by taking cuts along the contour.

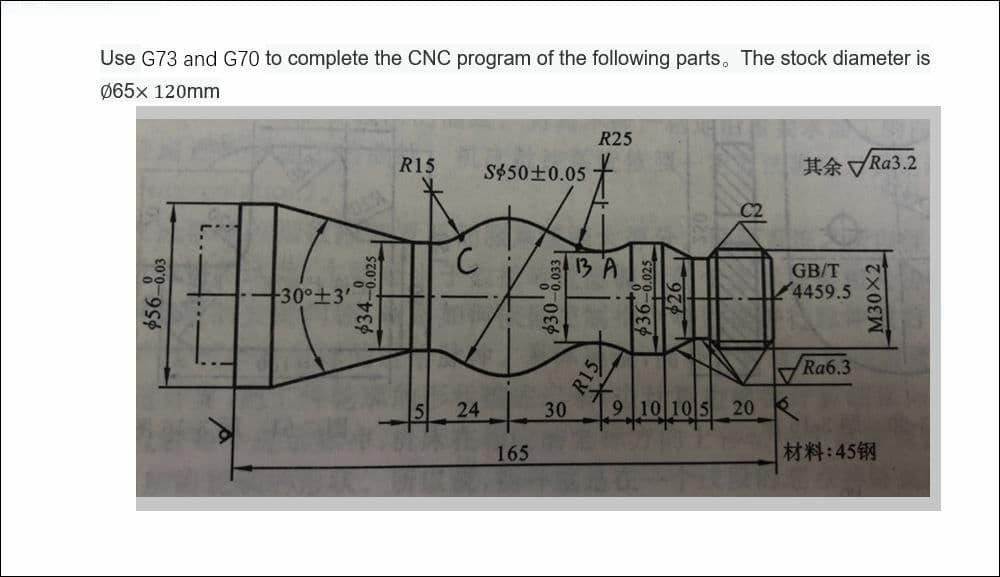

Solved Use G73 and G70 to complete the CNC program of the. CNC Program Main Program: N0 G90 F0.2 S1200 T0101 M04 N10 G00 X42 Z2 N30 M98 P12000 (call subprog O2000 once) N130 G28 U0 W0 N140 M05 M30 Subprogram: O2000; N30 G73 U12 R24 N40 G73 P50 Q120 U0.05 W0.05 N50 G01 X16 Z0 N60 G01 X16 Z-20 N70 G03 X30 Z-28 R8 N71 G01 X30 Z-45 N80 G01 X40 Z-60 N90 G01 X40 Z-68 N100 G02 X40 Z-78 R8 N110 G01 X40 Z-88 N120 G01 X50 Z2 N121 M99 It then rapids the Z axis down to 1mm above the part R1

G73 and G83 Peck Drilling Cycles. G74: Peck drilling cycle for CNC lathe: G75: Grooving cycle for internal or external grooves, often using pecking method. What is the difference between G73 and G83? Both are peck drilling cycles.
